Demand analysis of perimeter scan radar security scheme

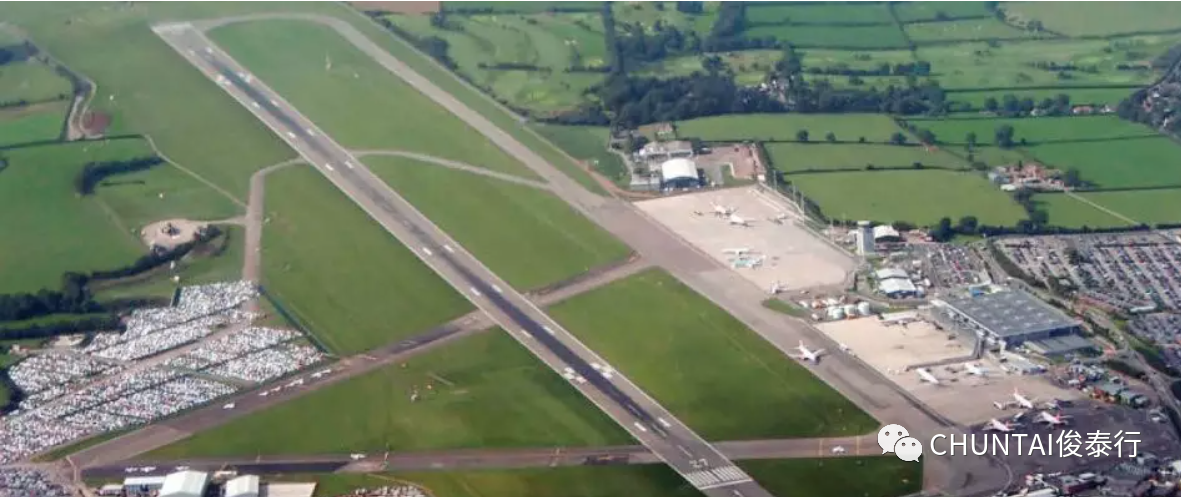

In the security field of wide area monitoring (such as airports, wharves, prisons, ports, power stations, oil fields, etc.), conventional solutions require a large number of fixed angle surveillance cameras to be arranged around the monitoring area, resulting in high system costs and heavy installation, maintenance, inspection and inspection. At the same time, the huge amount of video information filtering workload leads to the risk of omission of manually monitored video images. In addition, the traditional monitor has a limited monitoring perspective, which leads to the lack of the ability of the conventional security system to detect and track the intrusion target in the whole process.
As a new alternative to the traditional monitoring system, the infrared panoramic radar system we provide has efficient area detection capability. At the same time, it can be equipped with visible light, laser ranging, radar and other equipment to consolidate the weak links of the security system and provide you with a comprehensive security solution

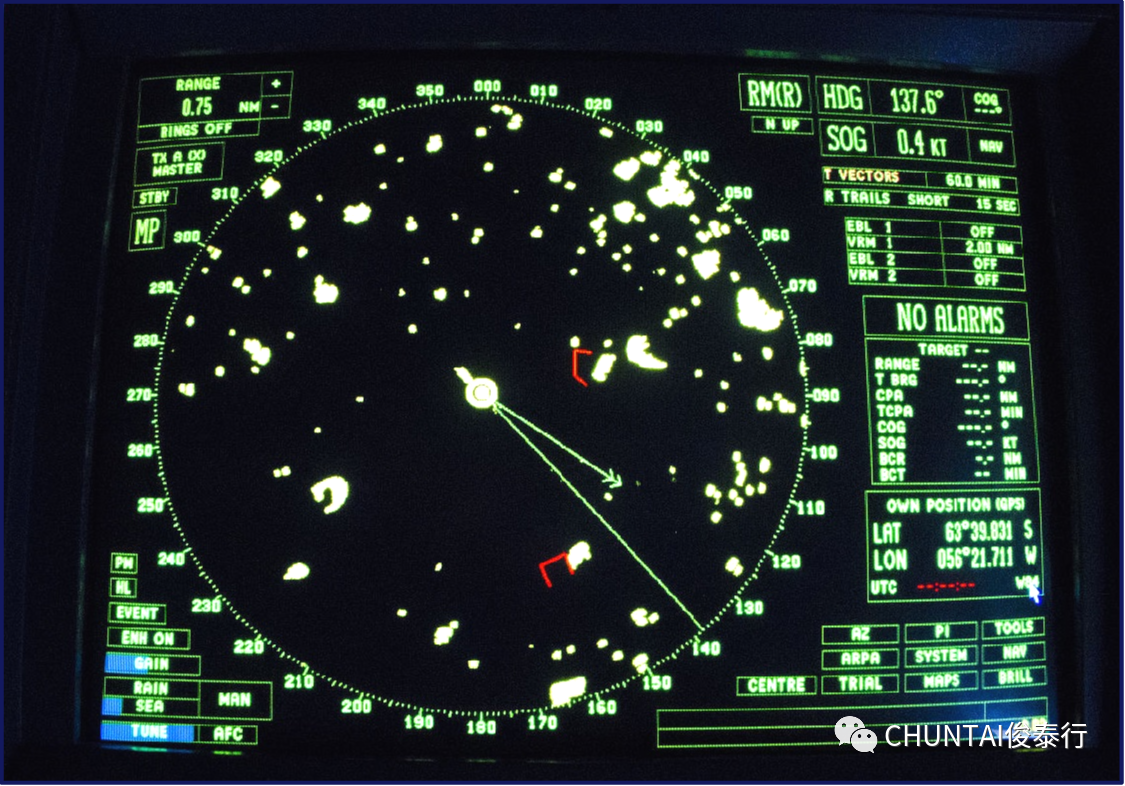

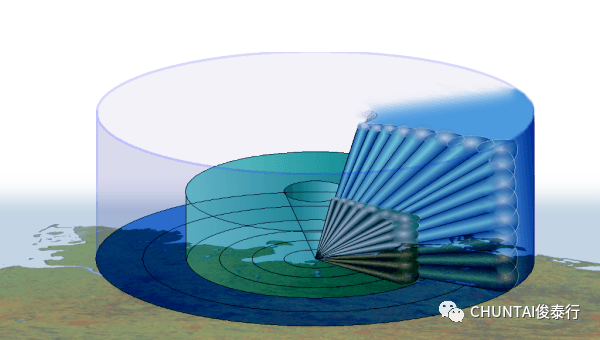

Limitations of common electromagnetic radar in detecting near ground targets
When the reconnaissance area is at ultra-low altitude and near the ground, due to the influence of terrain, buildings and other factors, the background clutter will increase significantly, the false alarm rate will rise linearly, the overall system efficiency will decline significantly, and the search and detection cannot be carried out effectively.
Product advantages of photoelectric radar perimeter scanning system
Various types of perimeter scanning photoelectric radar equipment can be selected, which will not cause interference to microwave radar
IP56 dust proof and waterproof CNC aluminum alloy shell
Mould proof, moisture-proof and salt spray proof coating
Efficient heat dissipation design of high performance electronic components
Capable of 7*24-hour full-time and all-weather monitoring under harsh environment
Passive detection without radiation
Completely passive infrared detection does not actively transmit electromagnetic wave and other signals
No need to supplement light, no electromagnetic radiation
Machine weight ＜ 20kg
1 fixed rack +1 mobile power supply +1 notebook
Equipment erection and deployment can be completed in half an hour
Support common mobile power supply
Power consumption of DC24V power supply machine <25w
Automatic monitoring alarm
Radar tracking function and tracking data fusion function are also included in the system. The fused data includes primary radar tracking, AIS and ADS-B information. In addition to the target alarm for illegal movement, if some ADS-B or AIS information does not comply with the regulations (not a friendly target), the software will also trigger the alarm.
User defined multi alert zone monitoring
Interface with existing onvif protocol equipment
Support domestic security agreement Ministry of public security gb/t28181

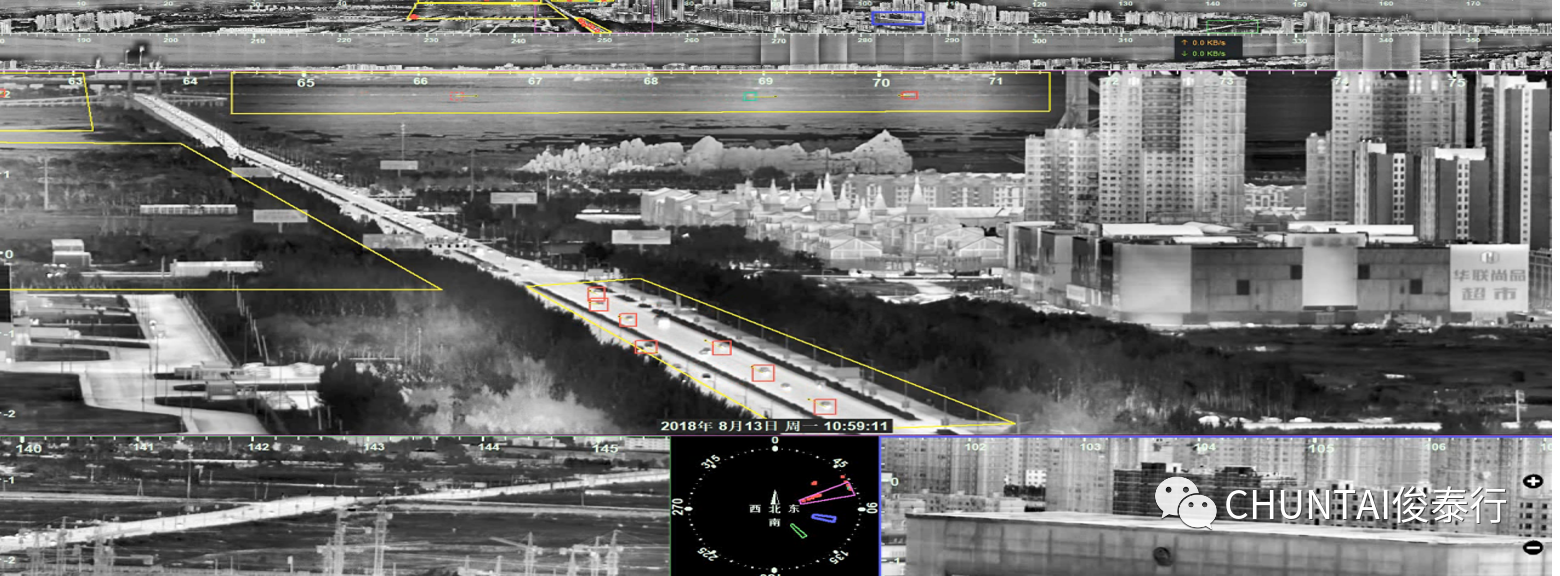

The radar main interface provides the situation awareness map of the overall monitoring area, through which the target activity in the area can be clearly observed. The highlighted area can observe the details in the small window below while observing the global situation. The main interface of the camera displays a picture taken by a camera. The following small windows can be selected to switch among multiple windows.
Intelligent radar target recognition and tracking
Compared with the monitoring method with only cameras, the radar perimeter security covers a wider range, and is not affected by the harsh environment such as dust, haze, rain, light intensity and so on. The monitoring personnel can inform each department in advance to make security preparations. The false positive rate is very low. It may only occur once every 24 hours.
Professional image algorithm

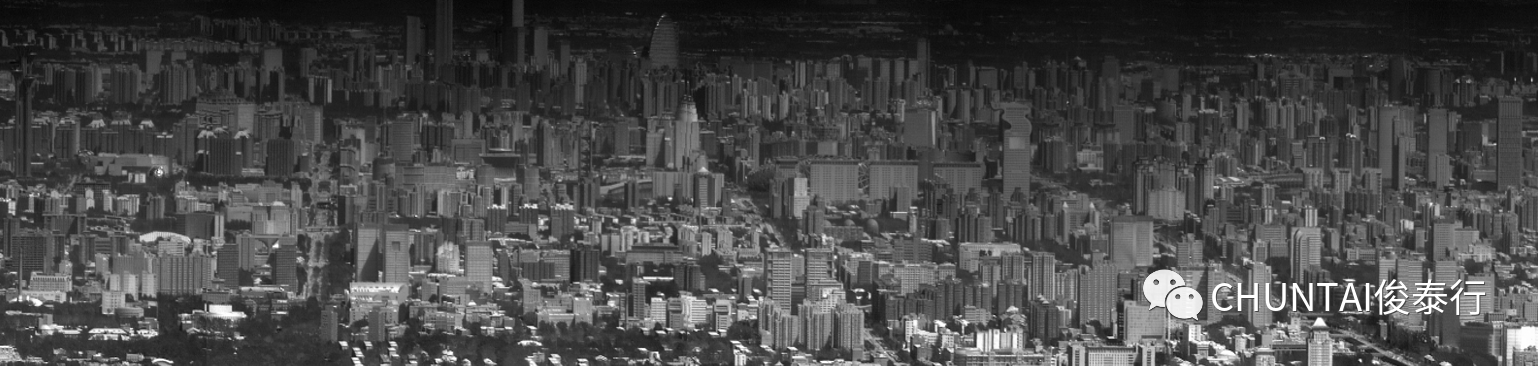

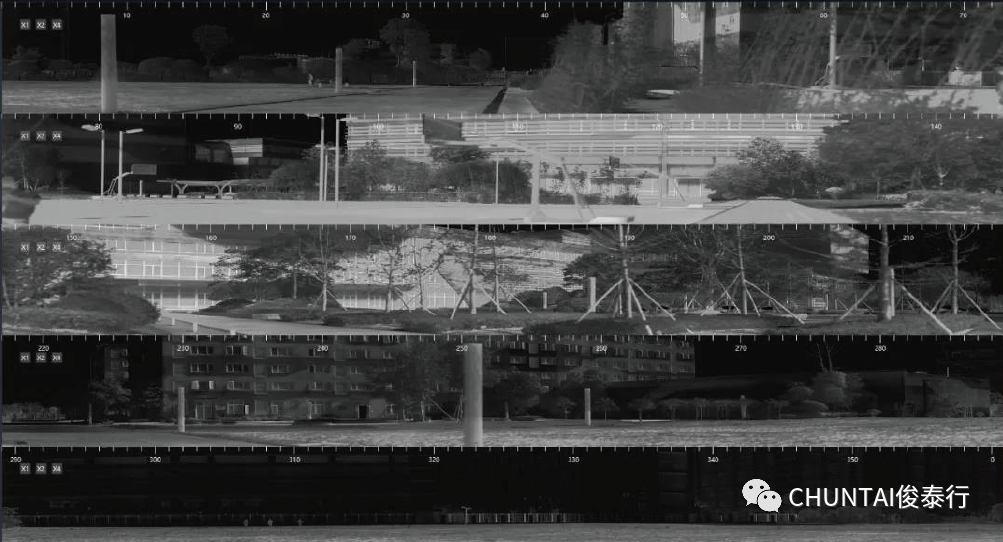

Combined with powerful image algorithm and advanced optical image stabilization technology, it ensures that the radar can shoot stably and image clearly in the process of continuous rotation.

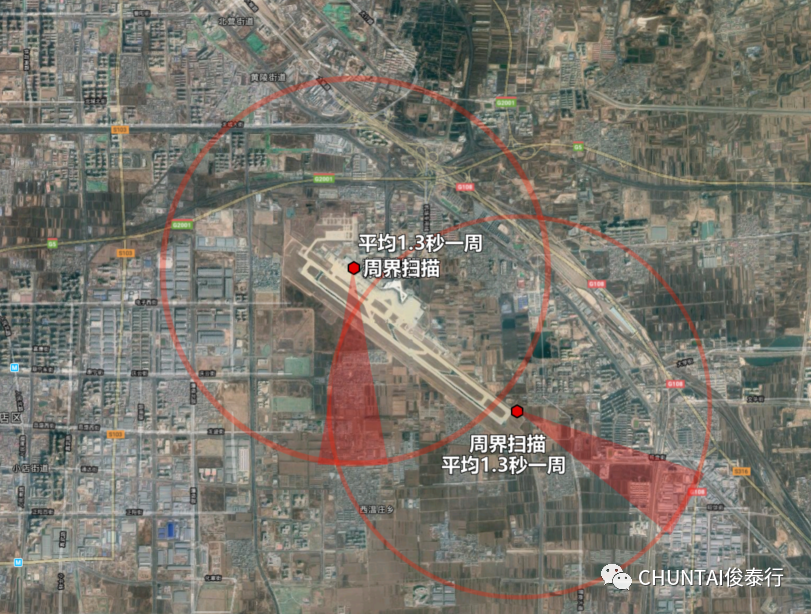

Case sharing of airport weekly scanning scheme (I)
Ground and air integrated monitoring system intrusion monitoring
Perimeter thermal imaging and perimeter scanning equipment can not only realize security monitoring activities, but also help the airport to monitor ground and air UAVs and realize ground air linkage.
